Chunked Layout

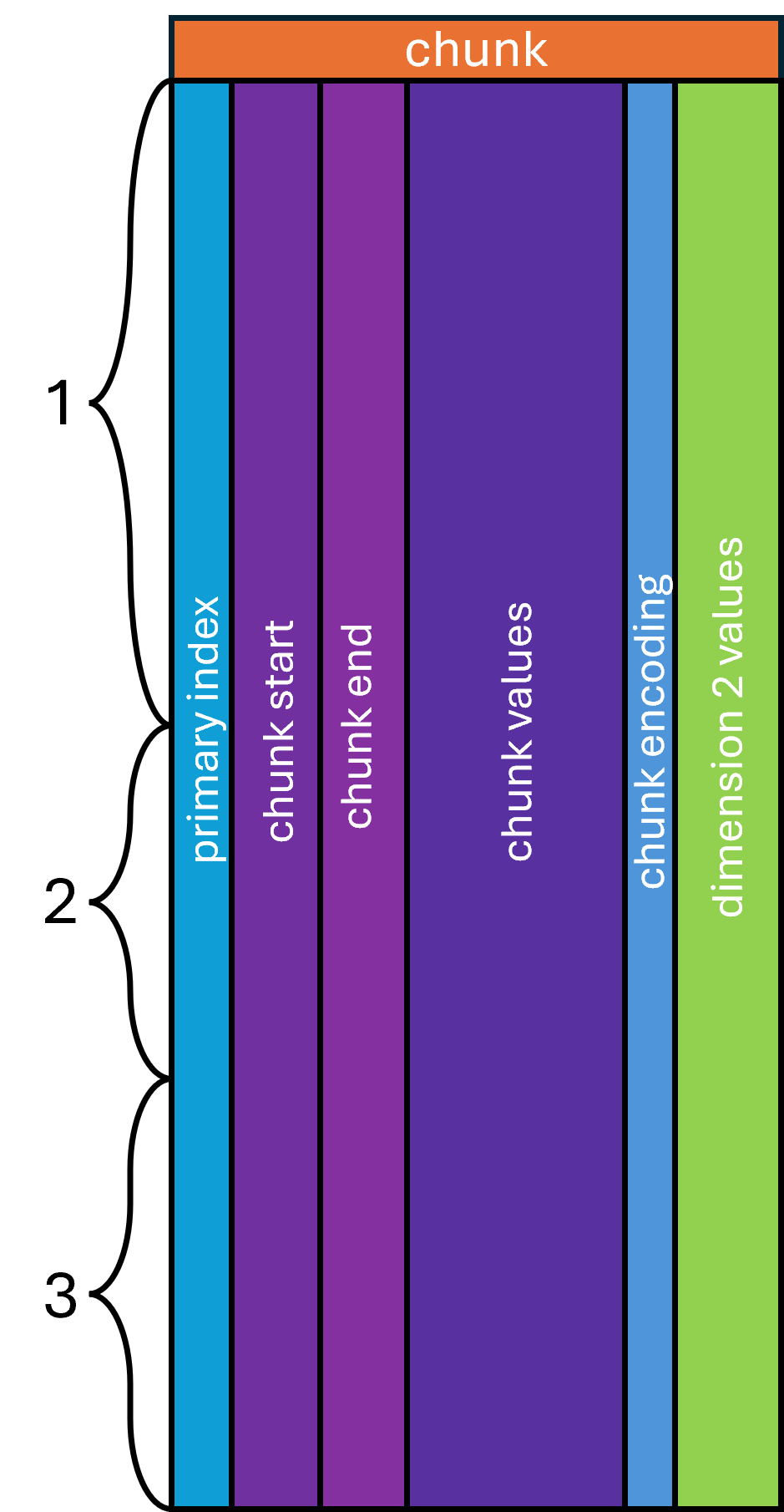

The chunked layout treats one array — which must be sorted — as the "main" axis, cutting it into chunks of a fixed size along that coordinate space (for example steps of 50 m/z) and taking the same segments from the parallel arrays. The main axis chunks' start, end, and a repeated index are recorded as columns; each array may then be stored as-is or with an opaque transform (delta encoding, Numpress, …). The start/end interval permits granular random access along both the main axis and the source index. The top-level schema node is named chunk, and the entity index column MUST be its first column.

chunk
spectrum_index	mz_chunk_start	mz_chunk_end	mz_chunk_values	chunk_encoding	intensity
1	200	250	[0.0013, …, 0.0013]	MS:1003089	[…]
1	250	300	[0.0014, …, 0.0014]	MS:1003089	[…]
1	500	550	[0.0014, …, 0.0015]	MS:1003089	[…]
…	…	…	…	…	…
2	200	250	[0.0013, …, 0.0013]	MS:1003089	[…]
2	350	400	[0.0014, …, 0.0014]	MS:1003089	[…]
2	400	450	[0.0013, …, 0.0014]	MS:1003089	[…]

This example uses delta encoding for the m/z chunk values, which is reconstructed with very high precision for 64-bit floats. The m/z values inside mz_chunk_values are not visible to the page index, but the _chunk_start and _chunk_end columns are. The chunk values remain subject to Parquet encodings, so they can be byte-shuffled for further compression.

Column naming rules

1. <entity>_index (integer) — the index key for the entity this chunk belongs to.
2. <array_name>_chunk_start (float64) — the first coordinate value in the chunk, inclusive. Its array-index buffer_format MUST be chunk_start.
3. <array_name>_chunk_end (float64) — the last coordinate value in the chunk, inclusive. Its array-index buffer_format MUST be chunk_end.
4. <array_name>_chunk_values (list) — the encoded coordinates from array_name according to chunk_encoding. Its array-index buffer_format MUST be chunk_values.
5. chunk_encoding (CURIE) — how <array_name>_chunk_values were encoded; see Chunk encodings. Its array-index buffer_format MUST be chunk_encoding.

All other columns are expected to be list arrays whose names are simply their array_name (with buffer_format chunk_secondary), or surrogate arrays with buffer_format chunk_transform.

Splitting data into chunks

A chunk table may be partitioned in any pattern, as long as the chunks are non-overlapping and ascending. The chunking procedure must be null-aware — in particular, aware of the null pairs that mark masked regions. The granularity is configurable, trading random-access granularity against compression efficiency.

Python — partitioning into chunks of width k with null pairs present

import pyarrow as pa

def null_chunk_every(data: pa.Array, width: float) -> list[tuple[int, int]]:
    """
    Partition a sorted numerical array into segments spanning `width` units.
    This operation is null-aware, so sparse arrays can be partitioned.
    Returns the (start, end) index of each chunk.
    """
    start = None
    n = len(data)
    i = 0
    # Find the first non-null position
    while i < n:
        v = data[i]
        if v.is_valid:
            start = v.as_py()
            break
        else:
            i += 1

    # If we never found a non-null position, just return a single chunk
    if start is None:
        return [(0, n)]

    chunks = []
    offset = 0
    threshold = start + width
    i = 0
    while i < n:
        v = data[i]
        if v.is_valid:
            v = v.as_py()
            if v > threshold:
                if ((i + 1) < n) and (not data[i + 1].is_valid):
                    while ((i + 1) < n) and (not data[i + 1].is_valid):
                        i += 1
                # Avoid a chunk of length 1, especially a null point; if so,
                # relax the width requirement.
                if i - offset > 1:
                    chunks.append((offset, i))
                    offset = i
                while threshold < v:
                    threshold += width
        # Look ahead: this value is null, but the next is not.
        elif ((i + 1) < n) and (data[i + 1].is_valid):
            i += 1
            v = data[i].as_py()
            if v > threshold:
                i -= 1
                chunks.append((offset, i))
                offset = i
                while threshold < v:
                    threshold += width
        i += 1
    if offset != n:
        chunks.append((offset, n))
    return chunks

Chunk encodings

Basic encoding

Chunk-encoding CV term: MS:1000576 — no compression

When storing centroids, or data that are not similarly spaced (as is usually the case for pre-centroided spectra), but still wanting the chunked layout, no special encoding of the chunk values is necessary. Values within each chunk are written as-is to the chunk-values array. This does not improve compressibility, but it keeps a consistent schema for other entries that would benefit from a different encoding.

Note

The start point is excluded from the chunk-values array.

Delta encoding

Chunk-encoding CV term: MS:1003089 — truncation, delta prediction and zlib compression

When data lie on a locally (almost) uniform grid using 64-bit floats, compression improves by computing a delta encoding of the coordinates.

Note

The start point is excluded from the chunk-values array.

Python — null-aware delta encode/decode

import pyarrow as pa

def null_delta_encode(data: pa.Array) -> pa.Array:
    """
    Delta-encode an Arrow array containing nulls. Nulls are encoded as null
    values and treated as 0.0 for the purpose of computing the next delta.
    """
    acc = []
    it = iter(data)
    # The first entry is the point of reference but not part of the delta
    # sequence unless it is `null`.
    last = next(it)
    if not last.is_valid:
        acc.append(last)

    for item in it:
        if item.is_valid:
            val = item.as_py()
            if last.is_valid:
                acc.append(pa.scalar(val - last.as_py()))
            else:                       # treat the last value as 0.0
                acc.append(item)
            last = item
        else:
            acc.append(item)            # carry the null forward
            last = item
    return pa.array(acc)


def null_delta_decode(data: pa.Array, start: pa.Scalar) -> pa.Array:
    """Decode an Arrow array that was delta-encoded *with* nulls."""
    acc = []
    if not data[0].is_valid:
        if not data[1].is_valid:
            # started at a non-null value immediately followed by a null pair
            acc.append(start)
        start = pa.scalar(None, data.type)
    else:
        acc.append(start.as_py())
    last = start
    for item in data:
        if item.is_valid:
            val = item.as_py()
            if last.is_valid:
                last = pa.scalar(val + last.as_py())
                acc.append(last)
            else:                       # last value assumed zero
                acc.append(item)
                last = item
        else:
            acc.append(item)
            last = item
    return pa.array(acc)

Numpress linear encoding

Chunk-encoding CV term: MS:1002312 — MS-Numpress linear prediction compression

This uses the MS-Numpress linear-prediction method (10.1074/mcp.O114.037879) to compress the chunk values as raw bytes. Numpress produces a buffer of an 8-byte fixed point, a 4-byte value 0, a 4-byte value 1, and then 2-byte residuals for all subsequent values. The array is therefore, by definition, not alignable to a 4- or 8-byte type. It also has no concept of nullity, which makes it incompatible with null marking.

To store Numpress-linear-encoded arrays, an extra column <array_name>_numpress_linear_bytes is added alongside the <array_name>_chunk_values column. It is a list of byte arrays (large_list<u8> in Arrow parlance — not large_binary; see the discussion of string-type "optimisation"). Its array-index entry MUST have buffer_format chunk_transform and the same array type, array name, data type, unit, and data-processing ID as the _chunk_values column. The transform field MUST be MS:1002312.

Note

The start point is included in the chunk-values array — it is a specific component of the Numpress-encoded bytes.

Opaque array transforms

Sometimes we prefer to store data lossily in non-uniform, unaligned, or otherwise non-standard types that have no physical representation in Parquet. MS-Numpress's short logged float (SLOF) and positive-integer encodings are good examples. While Numpress-linear handles the coordinate dimension, opaque transforms can also encode the secondary arrays in chunks. These columns are recorded in the array index with buffer_format chunk_transform, and the transform field is the CURIE for the relevant method — for example MS:1002314 for MS-Numpress SLOF. The column's physical type MUST be a list of byte arrays, though the type in the array index MUST be the decoded array's real type. Column names SHOULD be of the form <array_name>_<transform_name>_bytes, e.g. intensity_numpress_slof_bytes.

Reading a single entry from the chunked encoding

To read a single entry (spectrum, chromatogram, …) stored in chunks:

1. Identify which columns are annotated as chunk_start, chunk_end, chunk_encoding, and chunk_values in the array index. The <entity_type>_index column MUST be the first column in the table, so it always has index 0.
2. Find the row group containing the entry's index value via the row-group metadata. Optionally, if the page index is available, find the row ranges of the pages that contain that index.
3. Read the selected row group (or page row range) and filter to rows whose <entity_type>_index equals the entry's index.
4. Optionally, sort the rows by their chunk_start value — usually ascending for the quantity being measured.
5. Process each selected row, decoding its chunk_values according to chunk_encoding and any transform in the array index. Unpack the chunk_secondary columns and apply any transforms, accumulating each column's arrays across rows. Some transforms require additional information from the entity's metadata table.
6. If the entry has additional auxiliary arrays, read and decode them from the metadata table.
